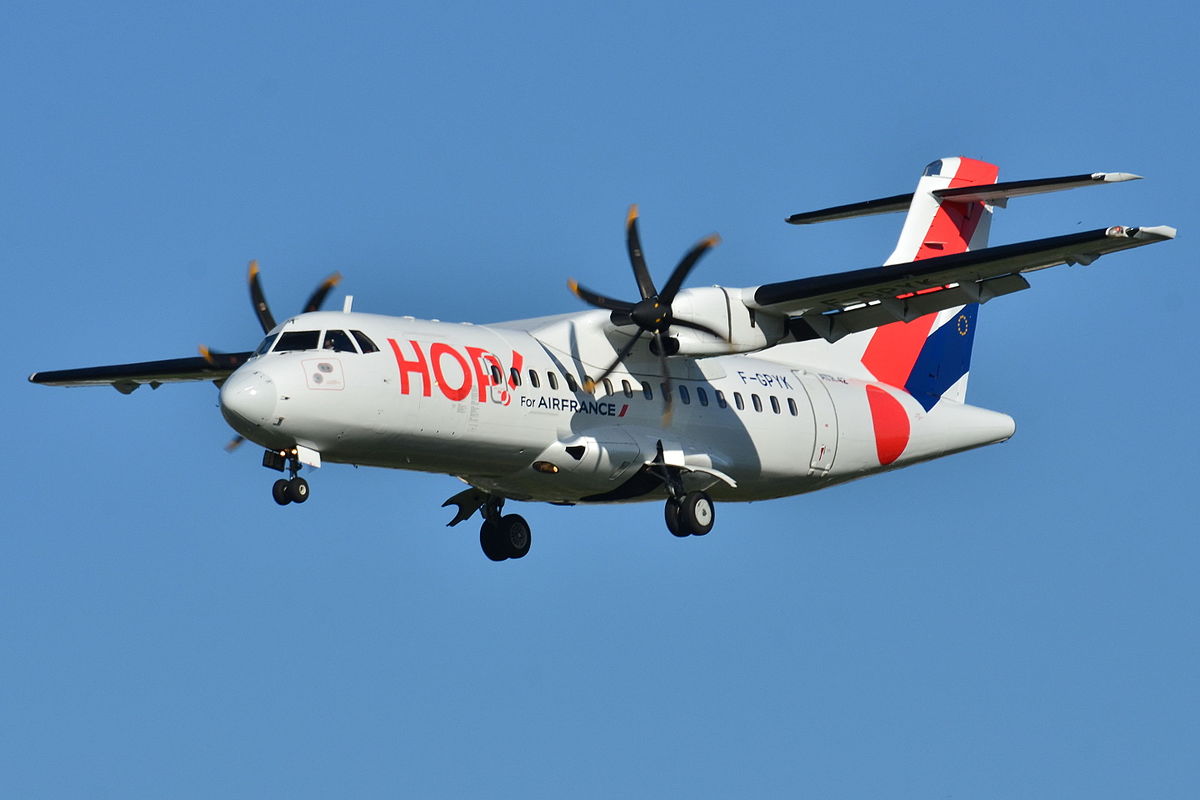

Hop! (for Air France) ATR 42-500 registration F-GPYK - MSN 537

Hop! (for Air France) ATR 42-500 registration F-GPYK.

The ATR is a twin-engine, turbo-propeller, high-wing, regional aircraft which is developed as the result of a joint venture specifically for the purpose of delivering this aircraft. The joint venture between Aérospatiale of France, now known as Airbus, and Aeritalia of Italy, now known as Leonardo was signed on 04 November 1981.

Both organisations had identified an opening space in the regional market which had been serviced for quite some time by the then-aging Fokker F-27 Friendship and the Handley-Page Herald.

This was a time, in Europe particularly, when aircraft makers were collaborating on ventures which would produce new models, such as the Airbus A300.

In standard configuration, the ATR-72 used the rear door(s) to board and deplane passengers. Whilst this is in operation it is normal procedure to secure a tail stand under the tail to prevent the aircraft from tipping onto its tail whilst the passenger weight is in the rear.

The forward door is mainly used for cargo and baggage access and some variants came with smaller or larger door openings depending on the operator's requirements.

In the case of launch customer Finnair, they required the forward door to be used for passenger access and that it fit the air bridges at Helsinki Airport.

Another feature that is unique to the standard ATR offering is the propeller brake on the number two engine.

The reason for this is that whilst on the ground at airfields without ground power, which of course would be more often than not for a regional airliner, the engine can be used as an Auxiliary Power Unit (APU).

So by arresting the movement of the propeller, the engine can continue to run, providing power to aircraft for airconditioning and other systems.

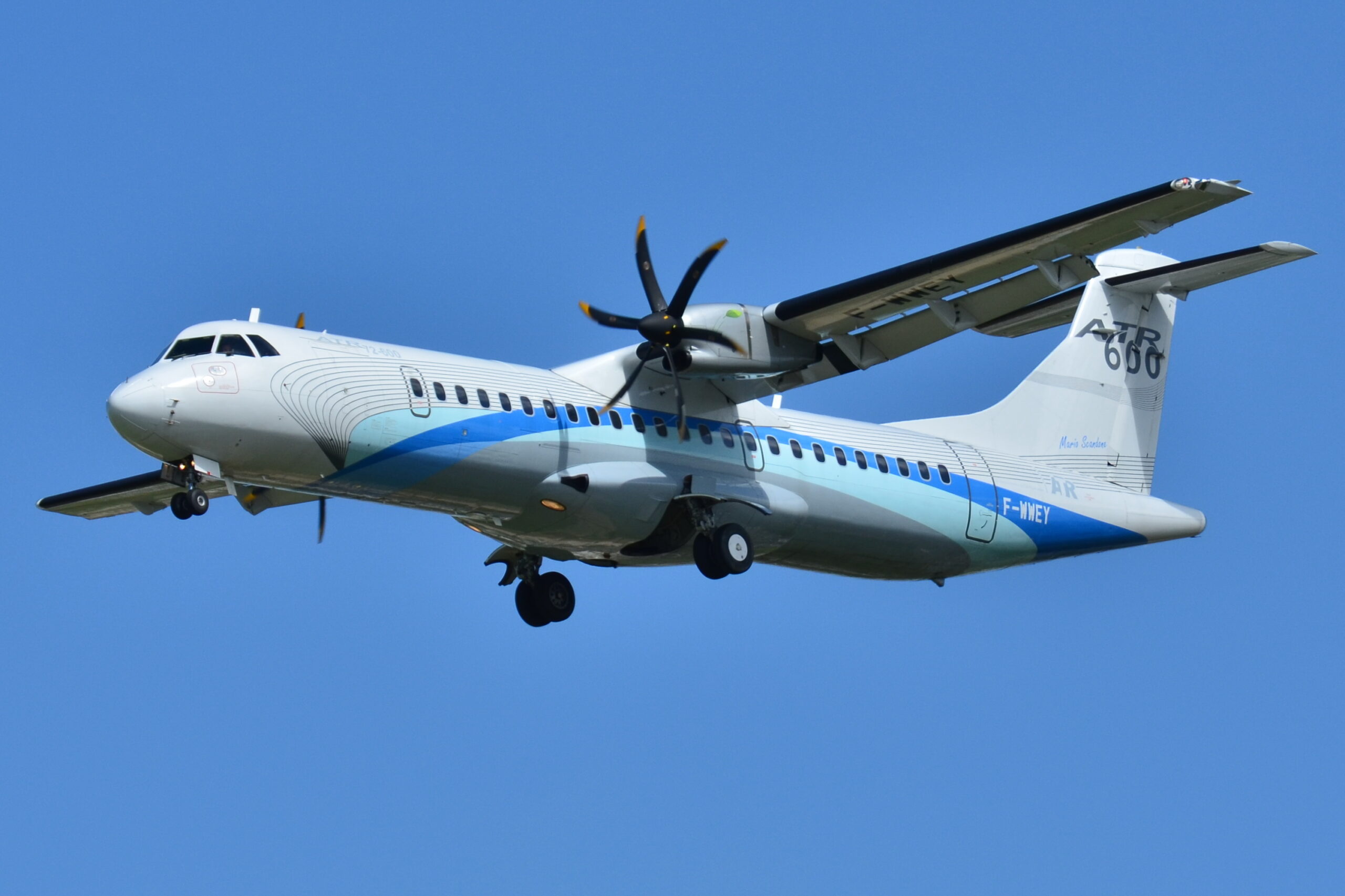

ATR 72-600 in ATR house colours F-WWEY - MSN 98

ATR 42 and 72 Specs Table

ATR-42 ATR-72
Variant 42-300 42-320 42-400 42-500 42-600 72-200 72-210 72-500 72-600
Flight Crew
Seating (Std. Config.)
48 66 68 70
Fuselage Length 22.67 Mtr / 74 Ft 5 In
27.17 Mtr / 89 Ft 1 In
Tail height
7.59 Mtr / 24 Ft 11 In
7.65 Mtr / 25 Ft 1 In
Cabin Width (inside)
2.57 Mtr / 8 Ft 5 In
Wheel Base 8.78 Mtr / 28 Ft 10 In
10.77 Mtr / 35 Ft 4 In
Wheel Track
4.1 Mtr / 13 Ft 5 In
Wing Span
24.57 Mtr / 80 Ft 8 In
10.77 Mtr / 35 Ft 4 In
Wing Area
54.5 Sq Mtr / 586 Sq Ft
61 Sq Mtr / 657 Sq Ft
Max. Take-off Weight 16,700kg/36,817lb 17,900Kg/39,462lb 18,600Kg/41,005lb 21,500Kg/47,399lb 22,000Kg/48,501lb 22,800Kg/50,265lb
ATR-42 ATR-72
Variant 42-300 42-320 42-400 42-500 42-600 72-200 72-210 72-500 72-600
Max. Landing Weight 16,400Kg/36,155lb 17,600Kg/38,801lb 18,300Kg/40,344lb 21,350Kg/47,068lb 21,850Kg/48,170lb 22,350Kg/49,272lb
Max. Zero Fuel Weight 15,200Kg/33,510lb 16,300Kg/35,935lb 16,700Kg/36,817lb 19,700Kg/43,430lb 20,000Kg/44,092lb 20,800Kg/45,855lb
Operational Empty Weight 10,900Kg/24,030lb 11,400Kg/25,132lb 11,700Kg/25,794lb 13,000Kg/28,660lb 13,600Kg/29,982lb 13,500Kg/29,762lb
Max. Payload 4,640Kg/10,229lb 5,200Kg/11,464lb 5,300Kg/11,684lb 7,000Kg/15,432lb 7,200Kg/15,873lb 7,500Kg/16,534lb
Max. Fuel Load 4,500Kg/9,921lb 5,000Kg/11,023lb
Take-off Dist. 1,090Mtr/3,576Ft 1,041Mtr/3,415Ft 1,205Mtr/3,953Ft 1,165Mtr/3,822Ft 1,409Mtr/4,623Ft 1,211Mtr/3,973Ft 1,224Mtr/4,016Ft 1,333Mtr/4,373Ft
Take-off Speed 108KCAS 111KCAS 112KCAS 115KCAS 113KCAS 115KCAS 116KCAS
Landing Ref Speed 103KIAS 105KIAS 104KIAS 114KIAS 109KIAS 113KIAS
Optimum Climb Speed 160KCAS 170KCAS
Rate of Climb 1,320ft/min 1,135ft/min 1,851ft/min 1,390ft/min 1,462ft/min 1,374ft/min 1,355ft/min
ATR-42 ATR-72
Variant 42-300 42-320 42-400 42-500 42-600 72-200 72-210 72-500 72-600
Time Climb to FL170 15.1 min 14.8 min 17.9 min 12.7 min 16.7 min 16.6 min 17.2 min -17.5 min
Max. Cruise Speed 266Kts/493Kph 270Kts/500Kph 261Kts/484Kph 300Kts/556Kph 278Kts/515Kph 279Kts/517Kph 275Kts/510Kph 275Kts/510Kph
Range (Max. Pax) 456Nm/845Km 459Nm/851Km 794Nm/1,470Km 716Nm/1,326Km 872Nm/1,615Km 805Nm/1,491Km 785Nm/1,454Km 825Nm/1,528Km
Engines SHP = Shaft House Power, PW = Pratt and Whitney Canada.
Engine Type PW120 PW121 PW121A PW127E/M PW127M PW124B PW127 PW127F/M PW127M
Take-off Power 1,800 SHP 1,900 SHP 1,980 SHP 2,160 SHP 2,475 SHP
Max. Continuous 1,700 SHP 1,900 SHP 1,900 SHP 2,400 SHP 2,500 SHP
Propellers Hamilton Standard  14 SF-5 Hamilton Standard  568F Hamilton Standard  14 SF-11 Hamilton Standard  247F-1 Hamilton Standard  568F
Blades / Diameter 4 / 3.96M, 13 Ft 6 / 3.93M, 12Ft 11In 4 / 3.96M, 13 Ft 6 / 3.93M, 12Ft 11In

Aeritalia and Aérospatiale discovered that they had both been working on very similar designs and therefore it seemed logical to pool their resources and work together. The name of the new venture is Aerei da Trasporto Regionale in Italy or Avions de transport régional in France. The acronym ATR fits both languages nicely.

Once the agreement was settled work began to fine-tune the final design, taking the best from designs so far by each party.

The initial design was aimed at the 40-seat market and from this the ATR 42 took shape. The 42 refers to the number of seats the aircraft would carry.  The first ATR 42 to take flight was known as the model ATR 42-300  and it took to the air for the first time on 16 August 1984.  After a rigorous certification process, the ATR 42 received type certification from the French and Italian aviation authorities in September of 1985.  The launch customer, French airline, Air Littoral flew the first commercial flight of the ATR 42 in December of that year.

During the time that the ATR 42 was being developed, ATR, the company, was setting up a Customer Services Division which was capable of supporting their aircraft anywhere in the world.  This was ready to go by 1983.

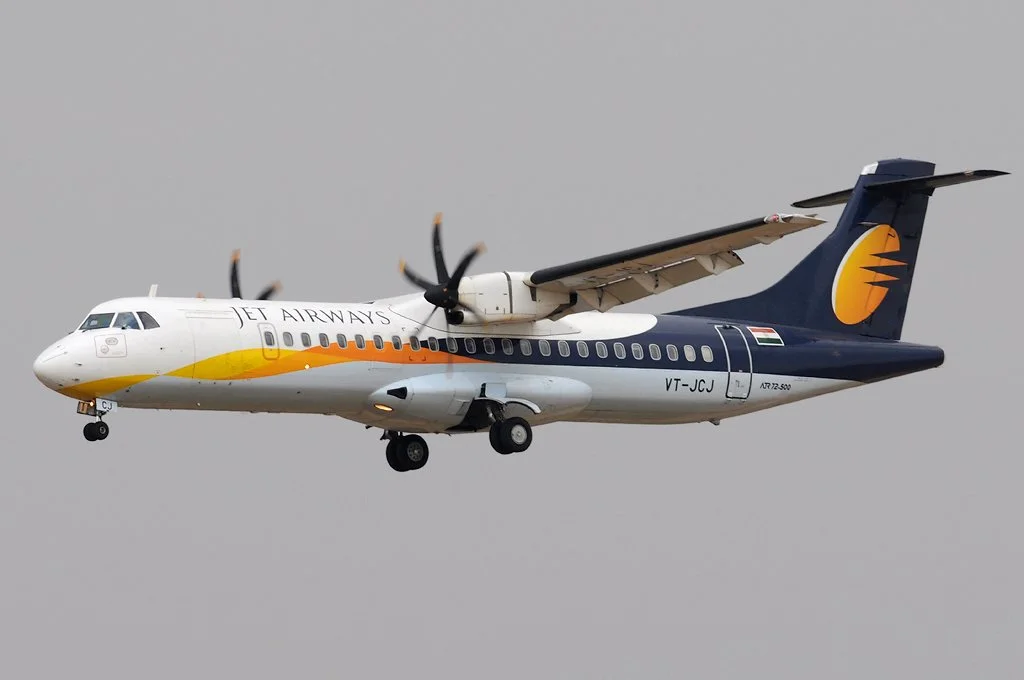

Jet_Airways ATR 72-500 registration  VT-JCJ

Jet Airways ATR 72-500 registration VT-JCJ.

In September 1989 ATR announced that they had achieved their target of 400 sales of the ATR 42.

The ATR 42 maintained its original specs until 1996 when some modernising changes were made, one change was the introduction of the more powerful PW-121 engines which gave it better performance over the original PW-120.

The new model was known as the ATR-320 and essentially looked the same as the original ATR-42. Aside from the ATR-300 and 320, there was a further variant to this model which was the ATR-300QC.

This model was capable of switching from passenger to cargo carrying in a very quick time as the QC stood for Quick Change. The passenger cabin seating was modular and was capable of being removed.  This allowed for carrying passengers during the day and then switching to cargo-carrying at night.

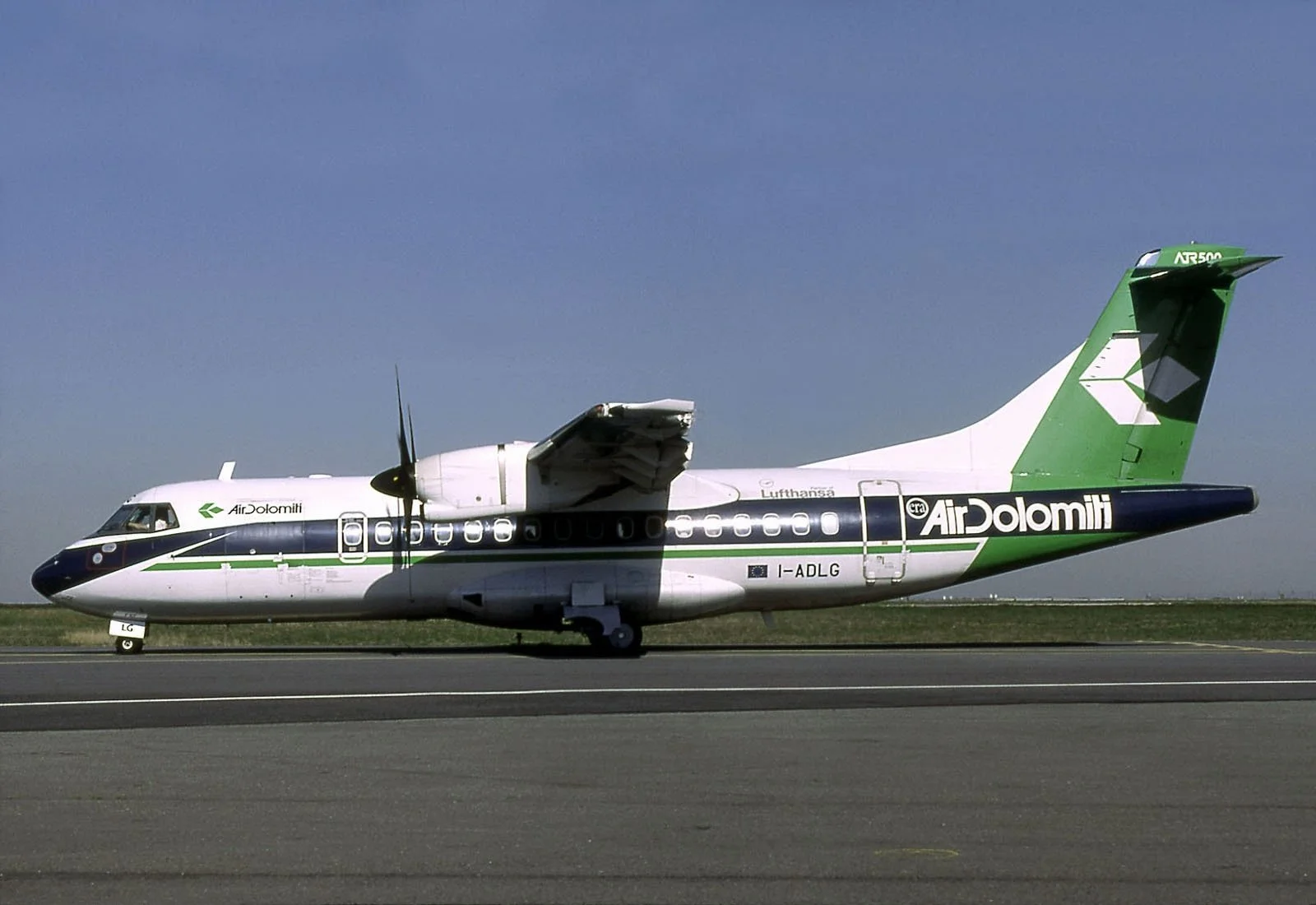

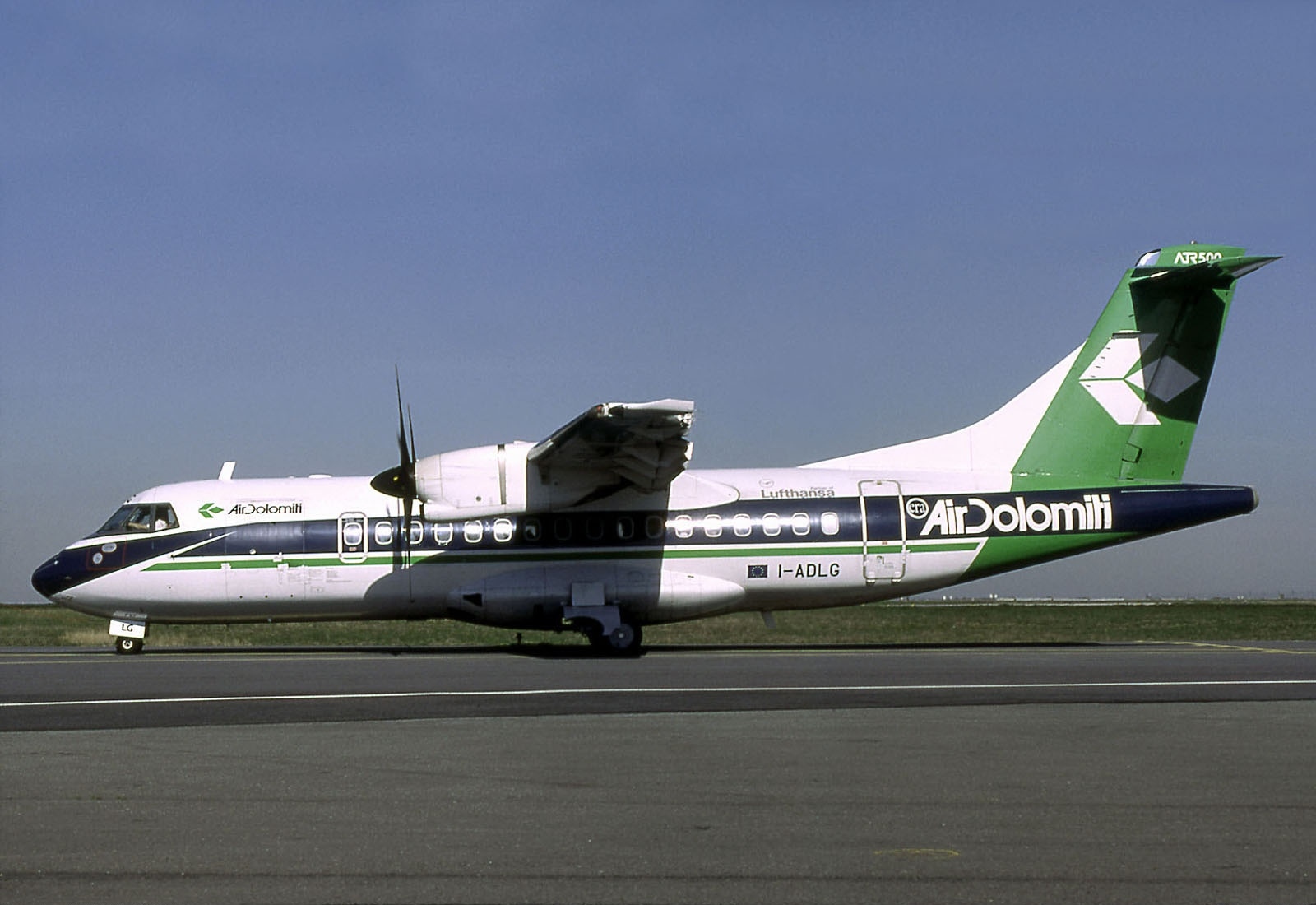

Air_Dolomiti ATR-42-500 registration I-ADLG

Air Dolomiti ATR-42-500 registration I-ADLG.

There was an ATR 42-400, however, only 5 were built. This model was simply an ATR-320 with the same PW-121 engines but with a six-bladed propeller.

The ATR 42-500 was a much more modernised aircraft overall. The first one was delivered in October 1995 and featured improvements in the passenger cabin as well as performance.

The engines were the more powerful PW-127Es which drove six-bladed propellers. These more modern propellors resulted in a quieter passenger cabin, whilst the extra power gave the 500 a better takeoff weight, better performance on hot and high airfields as well as extra range.

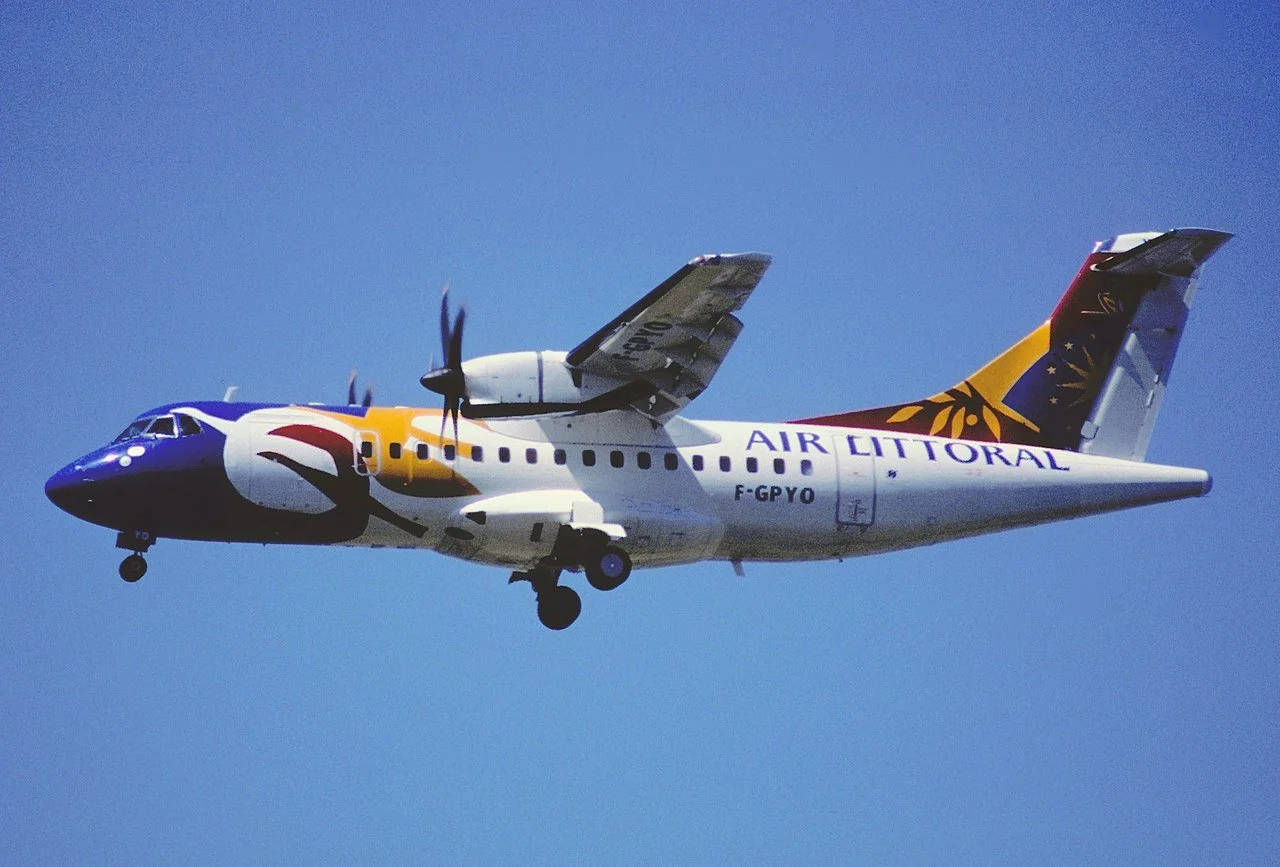

Air Littoral ATR 42-500 registration F-GPYO landing at Zurich(ZRH).

As the ATR 42 was taking to the air for the first time, plans were already underway to create a larger model. The ATR 72 was designed to cater for 78 passengers and was essentially a stretched ATR 42.

The main differences between the two were an increase to the fuselage length of 4.5 metres (15 ft) and a slightly larger wingspan which allowed for the accommodation of 10% more fuel capacity. Both aircraft are assembled on the same assembly line as their components and systems are generally the same. In this way, they complement each other as demand may rise and fall for either model.

The launch of the ATR 72 project began on 15 January 1986 with the first airframe taking its maiden flight on 27 October 1988. On 25 September 1989, the French Directorate-General for Civil Aviation granted type certification, with launch customer Finnair putting their first ATR 72 into service on 27 October 1989.

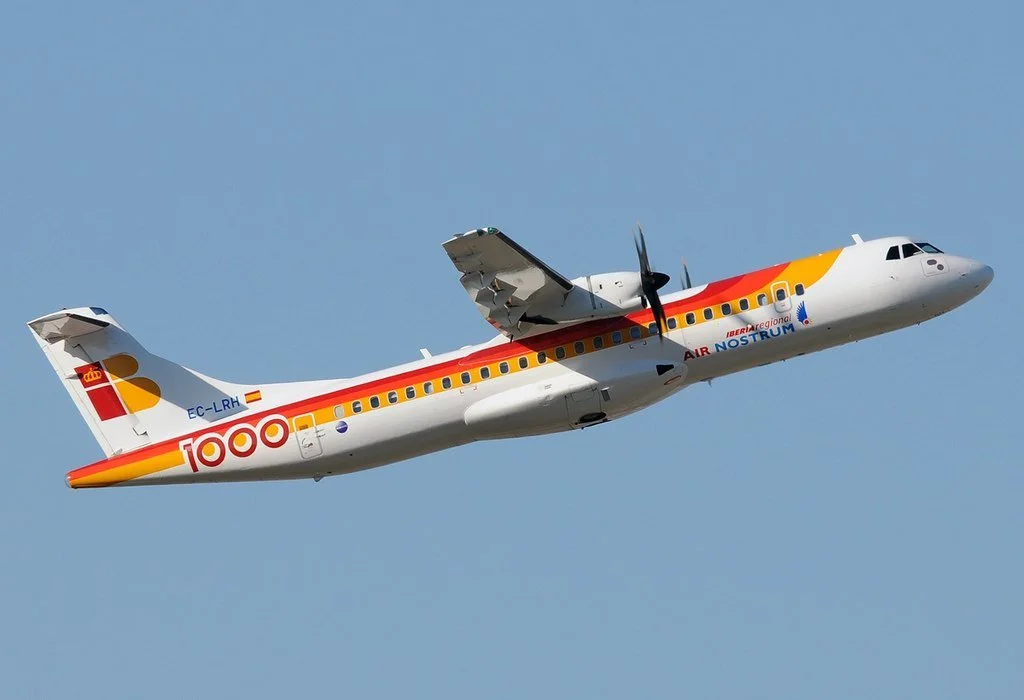

Air Nostrum(Iberia Regional) ATR 72-600 registration EC-LRH

Air Nostrum(Iberia Regional) ATR 72-600 registration EC-LRH.

There have been 5 main variants of the ATR-72 with differences mainly around engines, door configuration and performance. These differences can be seen in our spec table below.  The current version is the ATR-600 which features an all-glass cockpit with wide screens, an improvement on the old EFIS system. As well, in the passenger cabin, the seats are lighter and the luggage bins have a greater capacity. This variant has also been approved for a high-density configuration of up to 78 seats.

The ATR order book is still looking healthy with projected orders set to keep the production line running for some time yet.  The company had started investigating a 90 seat version of the type, however, there seemed very little interest by either Airbus or Leonardo to pursue this and it has reportedly been shut down.

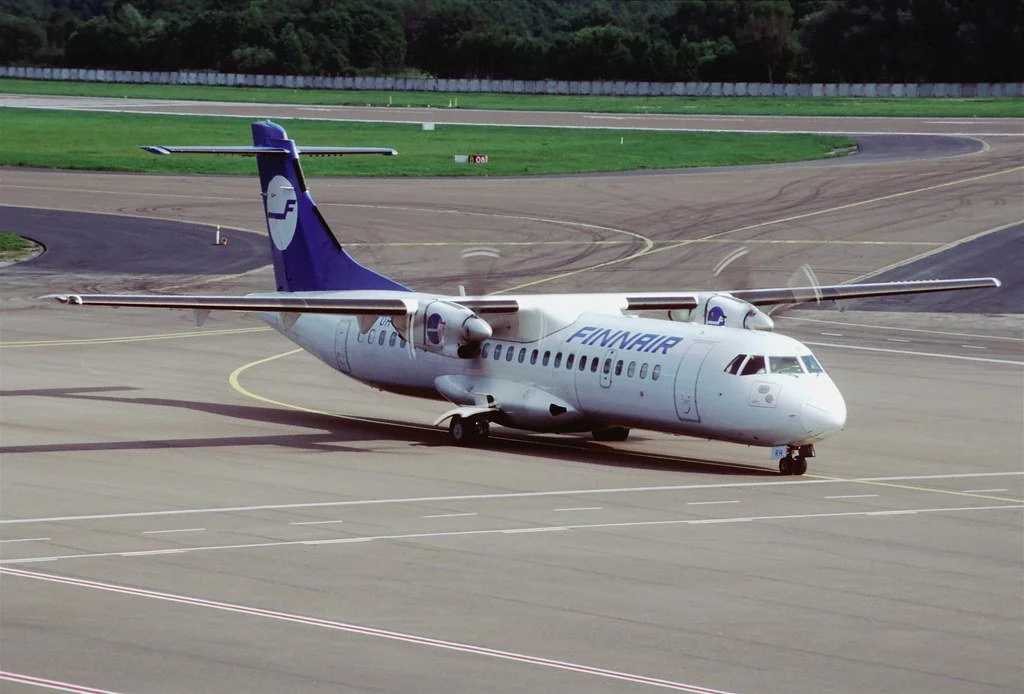

Finnair ATR 72-201 registration OH-KRH at Tallinn(TLL)

Finnair ATR 72-201 registration OH-KRH at Tallinn(TLL).
